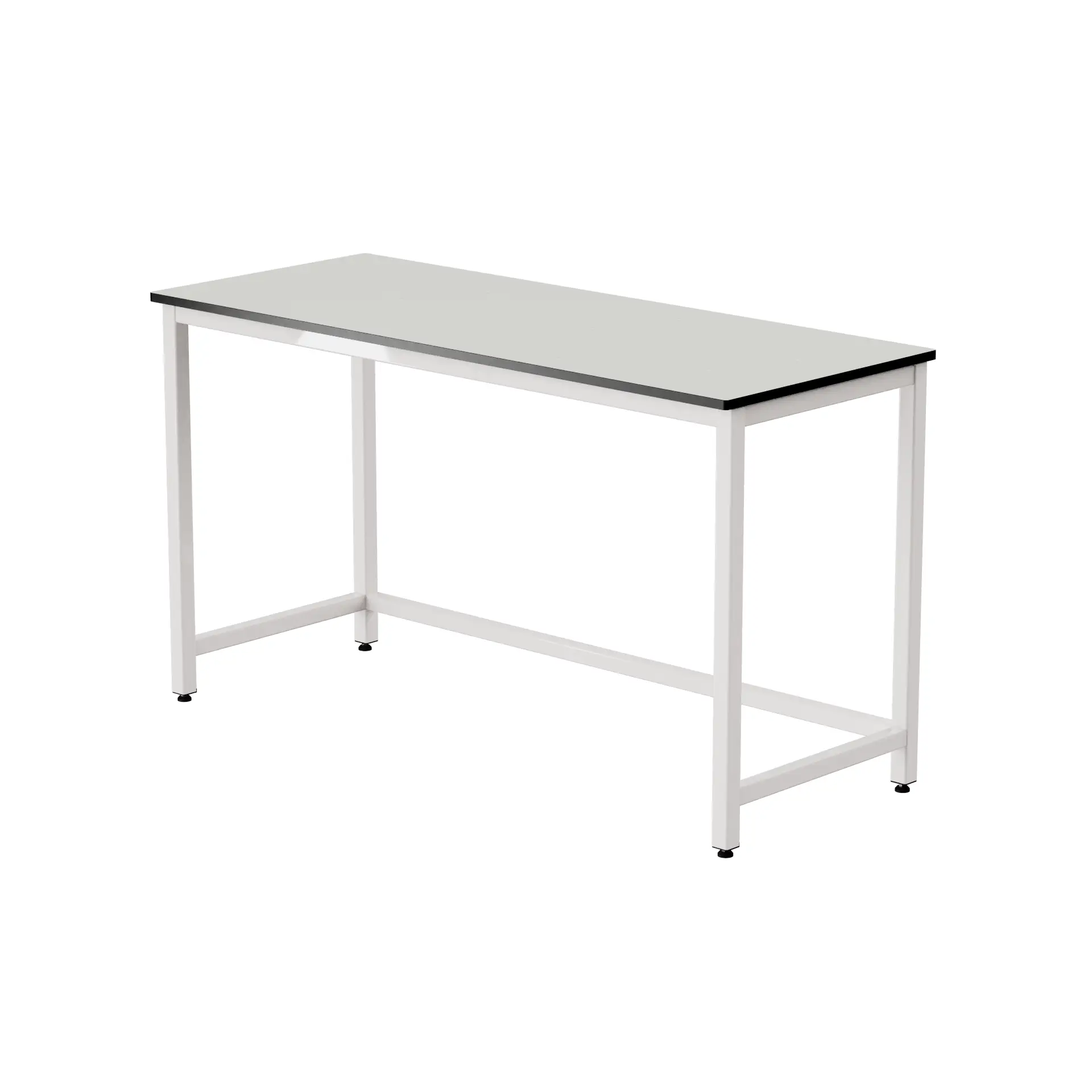

Heavy Duty C Frame Lab Table - 1000mm x 700mm

Heavy Duty C Frame Lab Table – 1000mm x 700mm

Price range: £214.50 through £421.31 Exc. VAT

Length
Width

Please note the minimum order quantity of this product in this configuration is 1.

Delivery from £60 and lead time 4-6 weeks.

Heavy Duty C Frame Laboratory Tables

Our Heavy Duty C Frame Lab Tables come in four lengths, three widths, and three heights to meet the needs of most laboratories and classrooms. With unrivalled experience delivering laboratory spaces for schools, universities, and the commercial sector, our design team has selected specific dimensions to provide the most popular and practical options.

They are ideal as stand-alone tables or for use in perimeter, peninsula, and island benching layouts, around service pedestals and bollards, or as part of desk arrangements.

Each Heavy Duty C Frame lab table is built using 43mm x 43mm x 4mm powder-coated aluminium sections with a professional finish that resists chipping, fading, and corrosion. The robust, rigid feet feature an adjustable range of 37.5mm to accommodate uneven floors.

We offer a choice of durable 16mm Trespa® worktops, all precisely machined with chamfered edges and extending 8mm beyond the frame. The 5mm curved radius corners eliminate sharp edges that could damage walls, equipment, or cause injury.

Our lab tables are designed and manufactured entirely in-house, ensuring quality craftsmanship and lasting performance you can rely on.

Can’t see what you want? Speak to our friendly team – we’re a UK manufacturer and can make custom furniture to suit your needs

FAQs

What’s the difference between Standard and Mobile tables?

All table ranges are designed to withstand the demands of commercial laboratories and schools, offering robust and reliable performance.

Heavy duty C Frame lab table Premium Mobile Lab Table Heavy duty H Frame lab table
Aluminium Gauge Vertical 43mm x 43mm x 4mm 43mm x 43mm x 4mm 43mm x 43mm x 4mm
aluminium Gauge Horizontal 43mm x 43mm x 4mm 43mm x 43mm x 4mm 43mm x 43mm x 4mm
Worktop 16mm Trespa® TopLab® BASE / PLUS ALIGN 16mm Trespa® TopLab® BASE / PLUS ALIGN 16mm Trespa® TopLab® BASE / PLUS ALIGN
Worktop Frame Overhang 20mm with 10mm curved radius corner 20mm with 10mm curved radius corner 20mm with 8mm curved radius corner
Castors N/A Heavy-duty 80mm wheel N/A
Feet Tilting – 37.5mm height adjustable N/A Rigid – 37.5mm height adjustable
Load-Bearing Capacity 400kg static 300kg 400kg static



Why is the Trespa® TopLab® PLUS ALIGN table worktop more expensive than the Trespa® TopLab®BASE one?

Trespa® TopLab® PLUS ALIGN is engineered for demanding environments requiring high chemical resistance, antibacterial properties, and durability. Its Electron Beam Curing (EBC) technology makes it non-porous and resistant to scratches, stains, and heat, ideal for sterile and regulated labs.

In contrast, TopLab® BASE is a cost-effective option for less demanding spaces, offering general durability but without the advanced resistance and certifications of PLUS ALIGN. The premium price of PLUS ALIGN reflects its superior performance and longer lifespan in harsh conditions.

For more information, see our Trespa® datasheet

How much adjustment is there in the table feet if the floor isn’t level?

Our heavy duty lab tables have rigid feet which can be adjusted by up to 30mm.

Can you fit cupboards under the tables?

We recommend tables that are 900mm high or above to accommodate cupboards underneath. If the cupboards are from another manufacturer, please check the clearance chart in the technical specification or ask our friendly sales team if still not sure.

Note that the space available for cupboards is less than the length of the table. For standard tables, the space available is 100mm less than the length; for Heavy Duty tables it is 130mm less; and for Premium Mobile tables, it is 170mm less.

Can you fit mobile cabinets or appliances under the tables?

Our 925mm and 950mm height options with widths of 700mm or more accommodate a typical under-worktop fridge or white good. Always check the clearance chart in the technical specification or ask our friendly sales team if still not sure.

Table Height (mm) Clearance Heavy duty table (mm) Clearance Mobile lab table (mm)
750 684 704
850 784 804
900 834 853
925 859 879
950 884 904
Min width 700mm



Can you supply tables with a small upstand attached to the rear edge?

Yes, we can! Just call 0161 799 2200 or email sales@apmg.co.uk and we’ll arrange it for you. Upstands are typically 50mm tall and the additional cost will depend on the length required.

Will the table fit through a single door?

It depends on the size of the table and the size of the door opening. All our table frames are fully welded for strength and cannot be dismantled. Please be careful to check that the access route is suitable, especially when considering larger tables.

Worktops

Choosing a worktop material that’s suitable for your application is vital. We use 16mm Trespa® solid grade laminate for our tables because it’s resilient and hard-wearing – we’re not offering MDF or chipboard for this purpose as we just don’t think it’s suitable for a lab environment.

Because we believe in attention to detail, all our Trespa® worktop edges are chamfered and polished to create a smooth, high-quality bevelled edge to the surface. We also insist on a radius corner for safety and comfort – we’re keeping bruises to a minimum!

We offer two types of Trespa worktop: Trespa® TopLab® BASE, and Trespa® TopLab® PLUS ALIGN.

Trespa® TopLab® BASE

With its hard wearing surface, Trespa® TopLab® BASE is a popular choice for sectors such as education, physical laboratories and institutions, where durability and wear resistance are paramount.



APMG recommends TopLab®BASE for laboratory bench surfacing where impact resistance is important and aggressive chemicals are not in use.

This heavy-duty surface is ideal where severe use and frequent cleaning is anticipated as the surface is not adversely affected by moisture. It performs well in commercial laboratories, and its scratch resistance makes it particularly suited to schools, with the exception of A Level Chemistry laboratories.

  • Greater performance with durability and impact resistance
  • Scratch and wear resistance
  • High dimensional stability
  • Easy to clean
  • Suitable for contact with food

Trespa® TopLab® PLUS ALIGN

For harsh laboratory environments which require higher chemical resistance, APMG recommends Trespa® TopLab®PLUS ALIGN. PLUS ALIGN is a new, more sustainable worktop material which combines the reliability and performance of TopLab® PLUS with a bio-based core. It has been tested with over 100 chemical agents and disinfectants.



Specifically, this material is suitable for university and A Level and GCSE Chemistry labs, and for commercial laboratories, including chemical, physical, and analytical labs.

It offers superior performance: inherent antibacterial properties, high impact and scratch resistance, and it withstands most aggressive chemicals and cleaning agents.

  • Excellent resistance to most aggressive chemicals and cleaning agents
  • Excellent hygiene performance being suitable to most disinfectants on the market
  • Greater performance with durability and impact resistance
  • Scratch and wear resistance
  • High dimensional stability
  • Easy to clean
  • Suitable for contact with food
